SIKA P40.2 Handheld Pneumatic Pressure Calibration Pump Kit Available

Product Description:

SIKA P40.2 Handheld Pneumatic Pressure Pump Kit

Type: Portable Handheld Pneumatic Test & Calibration Pump

Series/Model: P40.2 (P40 Series)

Manufacturer: SIKA (Dr. Siebert & Kühn GmbH & Co. KG)

Country of Origin: Germany

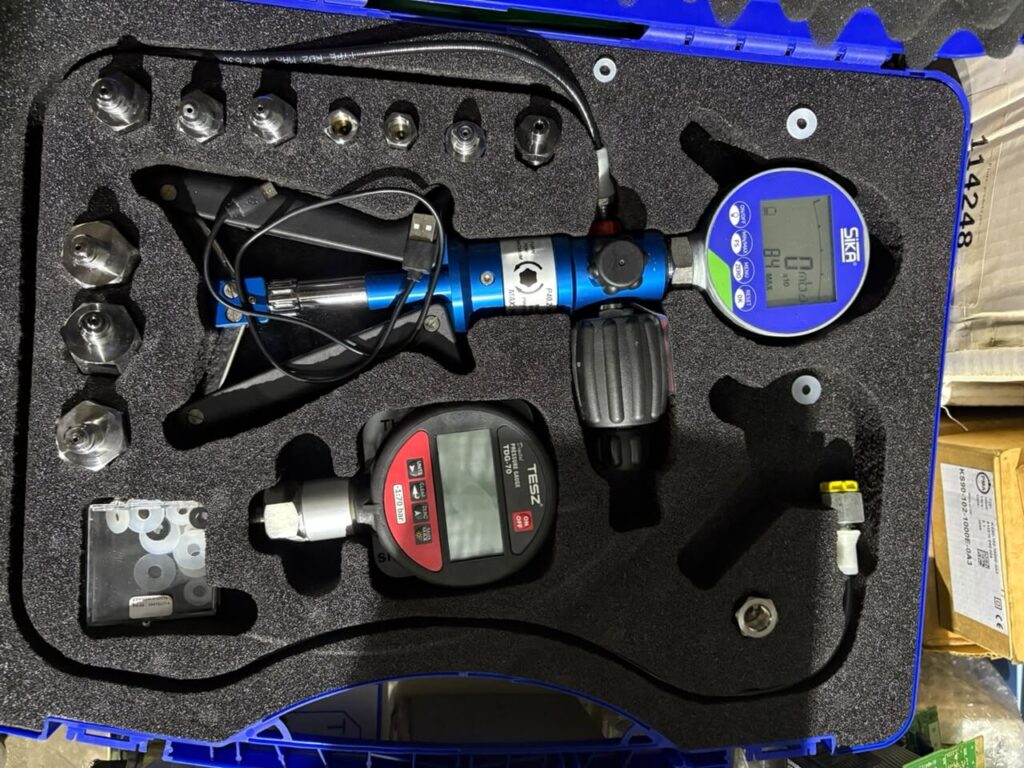

Condition: Authentic Industrial Surplus (Complete set in heavy-duty carrying case, equipped with SIKA digital reference gauge, secondary digital gauge TESZ TDG-70, high-pressure hose, complete adapter set, and seal set)

Fits For: Ideal for precise testing, adjustment, and calibration of various pressure instruments (pressure gauges, transmitters, pressure switches, and sensors). Designed for field use, instrument workshops, marine/offshore facilities, and calibration laboratories without requiring an external compressed air supply.

Key Components:

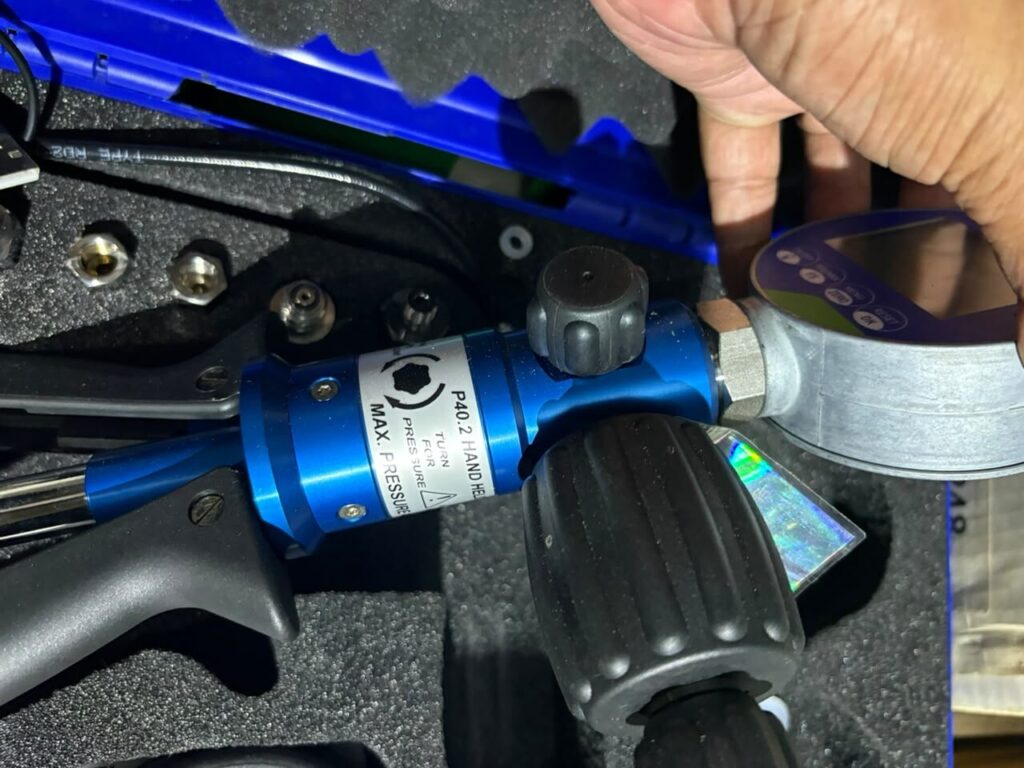

• SIKA P40.2 Pneumatic Hand Pump Body: Heavy-duty anodized aluminum body with ergonomic hand grips, internal return spring, and a switchable pressure/vacuum valve
• SIKA Digital Reference Pressure Gauge: Top-mounted digital gauge serving as the primary reference standard
• TESZ TDG-70 Digital Pressure Gauge: Secondary digital pressure gauge (-1 to 70 bar)
• Fine Adjustment & Relief Valve: High-precision fine-thread adjustment valve for mbar-level tuning and a safe pressure relief valve
• Flexible High-Pressure Hose: 1-meter industrial flexible hose with quick-coupling connectors
• Complete Pressure Adapter Set: 11 metallic thread adapters (G 1/8, G 1/4, G 3/8, G 1/2, NPT 1/8, NPT 1/4, NPT 1/2, M12x1.5, M20x1.5, G 1/8 A, G 1/4 A) made of chrome-plated brass to fit various test items
• Seal & O-Ring Set: Assorted flat gaskets (PA) and plastic O-rings to ensure airtight connections
• Heavy-Duty Carrying Case: Blue protective case with custom rigid foam inlay and document compartment (EPPM040KOFFE01)

Key Technical Specifications:

• Pressure Range: Positive Pressure: 0 to +40 bar, Vacuum/Negative Pressure: 0 to -0.95 bar (-950 mbar)
• Pressure Medium: Air / Dry Air (Pneumatic medium only, non-hydraulic)
• Fine Adjustment: mbar-precision fine volume control valve with ultra-fine thread pitch for micro-pressure adjustments
• Mechanical Settings: Adjustable knurled nut system on the piston rod for spring preloading and pumping stroke limitation
• Connection Ports: Reference Gauge Port: G 1/4 female, Test Item Connection: G 1/4 quick coupling via 1-meter pressure hose (Maximum tightening torque: 15 Nm)
• Operation Mode: Manual hand-pump with tool-free switch between positive pressure and vacuum generation
• Dimensions & Weight: Pump Unit Only: ~240 x 170 x 50 mm; ±1.1 kg, Full Set with Carrying Case: ~450 x 370 x 110 mm; ±3.1 kg to 4.2 kg

Please get back to us using our WhatsApp channel or contact us via mail to get a Quotation.
