Product Description:

Masoneilan 8013-258 Electro-Pneumatic Positioner

Type: Electro-Pneumatic Cam Positioner (8000 Series Force-Balance Device)

Series/Model: 8013-258

Manufacturer: Masoneilan (Dresser Produits Industriels S.A.S./GE Oil & Gas/Baker Hughes)

Country of Origin: France

Condition: Brand New/Unused Surplus in Original Box (Complete with mounting accessory kit, documentation CD, and factory packaging)

Fits For: Ideal for precise positioning of linear control valves and pneumatic actuators (such as Camflex II, Varimax, Minitork II, and 87/88 multispring actuators) in oil and gas refineries, chemical processing plants, offshore platforms, power generation, and hazardous area control loops.

Key Features & Capabilities:

  • High-Accuracy Force-Balance Control: Directly compares valve position with a 4–20 mA DC control signal to deliver rapid dynamic response and precise positioning.
  • Multi-Lobe Cam System: Allows field-changeable linear or equal percentage control characteristics without requiring extra parts.
  • Versatile Field Adjustment: Supports direct or reverse action (increase in electrical signal increases or decreases output pressure) and flexible split-ranging for sequential valve operations.

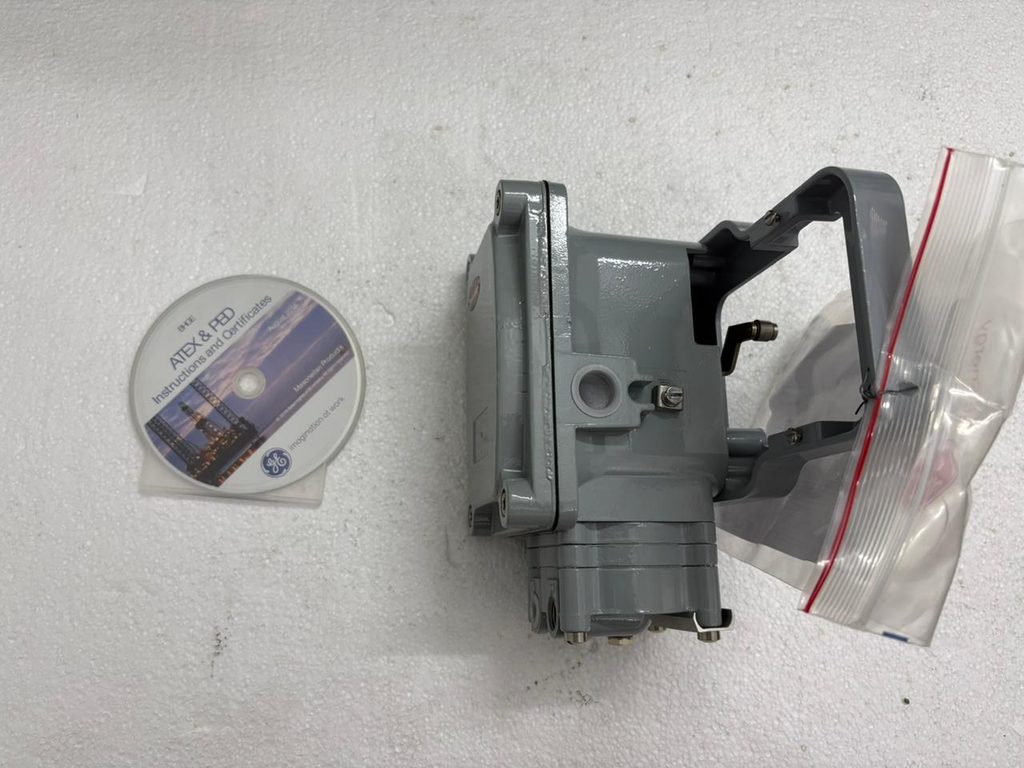

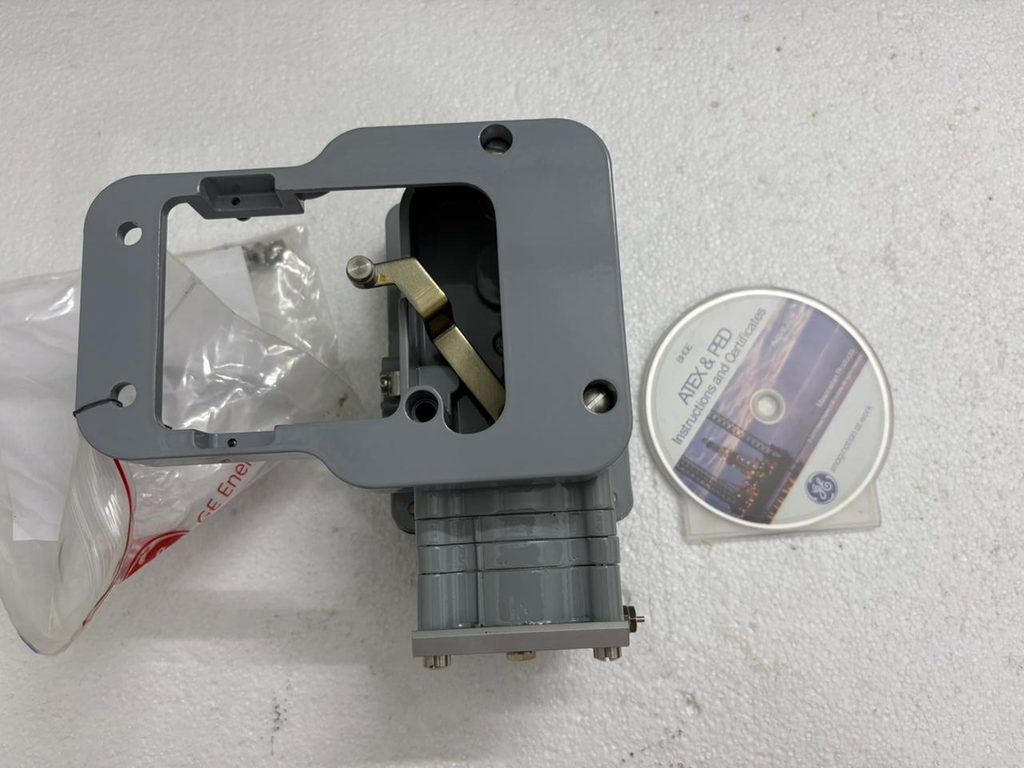

Key Components Included:

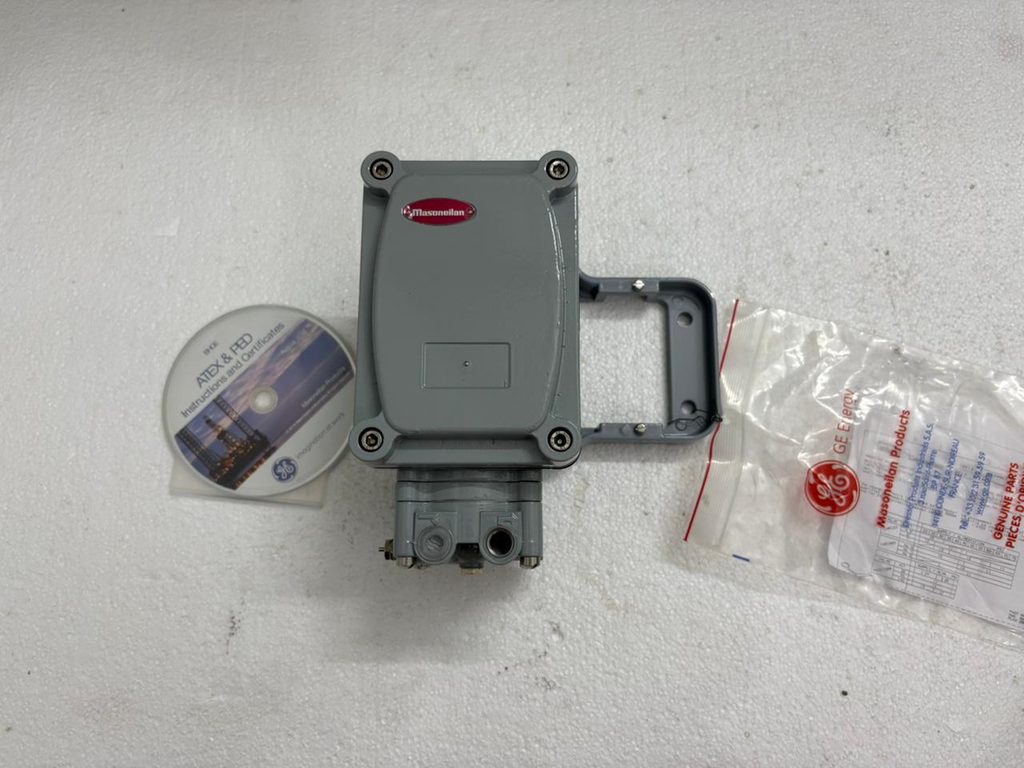

  • Masoneilan 8013-258 Positioner Unit: Heavy-duty cast enclosure with protective finish and internal feedback mechanism.
  • Accessory Bag: Sealed GE Energy genuine parts bag with mounting hardware and fasteners.
  • Documentation Disc: ATEX & PED instructions and certificates CD.

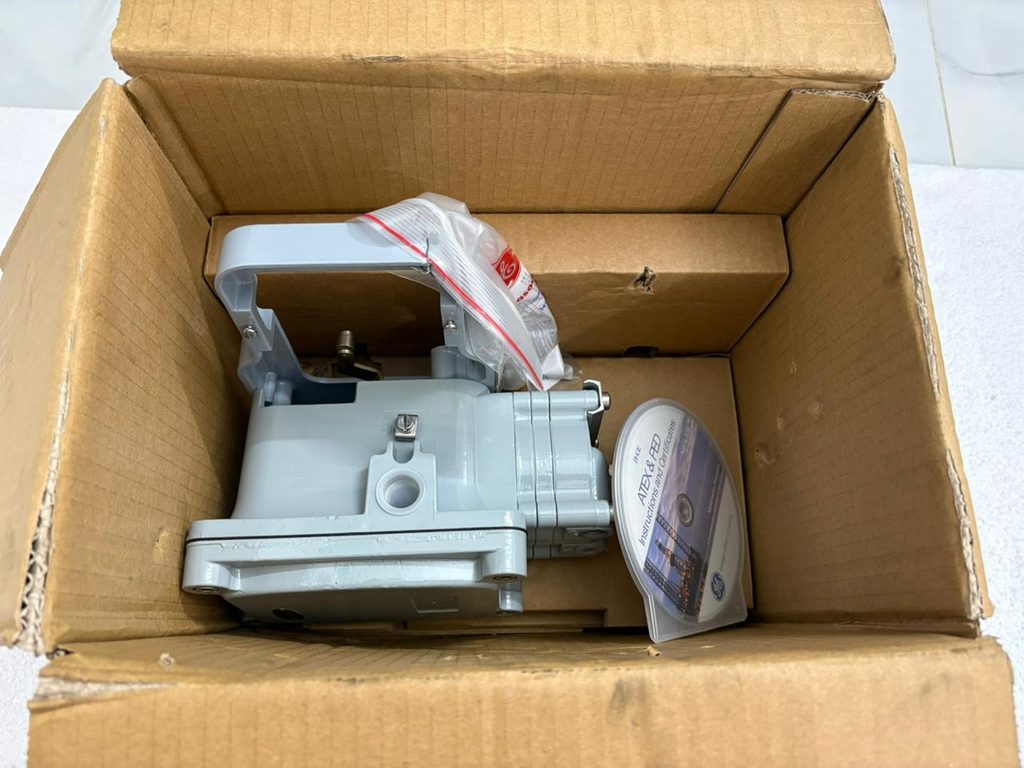

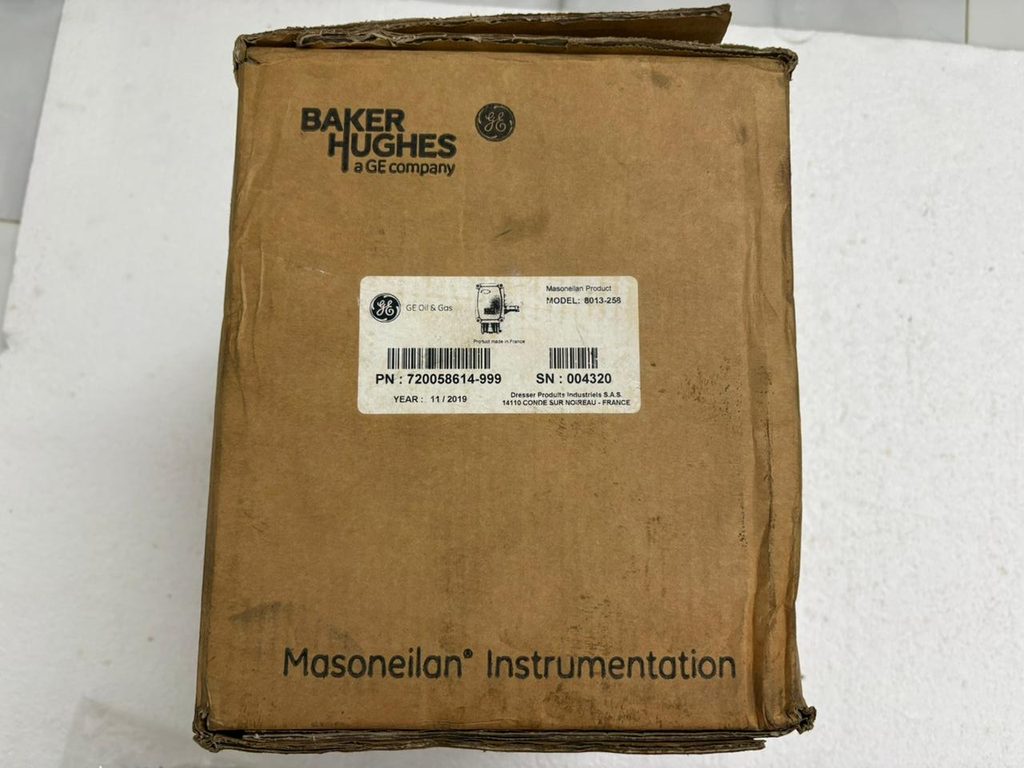

  • Original Packaging Box: Factory cardboard box with complete serial and part number label identification.

Key Technical Specifications:

  • Electrical Input Signal: 4–20 mA DC
  • Impedance: 216 Ohms ±10%
  • Action: Direct (Directe)
  • Air Connection Size: 1/4″ NPT
  • Performance Ratings: Hysteresis at Mid-Stroke: 0.8% max; Sensitivity: 0.3% max; Supply Pressure Influence: 0.3% to 0.7% of output pressure per 100 mbar supply change
  • Electrical / Intrinsic Safety Parameters: Ui = 30 V, Ii = 100 mA, Pi = 0.7 W, Ci = 0 F, Li = 0 H
  • Operating Temperature Range: -20°C to +80°C (Ta)
  • Explosion-Proof & Hazardous Area Certifications: ATEX / IECEx Rating: Ex II 1 G D; Gas Protection: Ex ia IIC T6 Ga (Ta = -20°C to +40°C) / Ex ia IIC T4 Ga (Ta = -20°C to +80°C); Dust Protection: Ex ia IIIC T85°C Da / Ex ia IIIC T135°C Da; Certificates: INERIS 16ATEX0012X / IECEx INE 16.0019X
  • Weight & Dimensions: Approx. 3.5 kg (7.5 lbs)

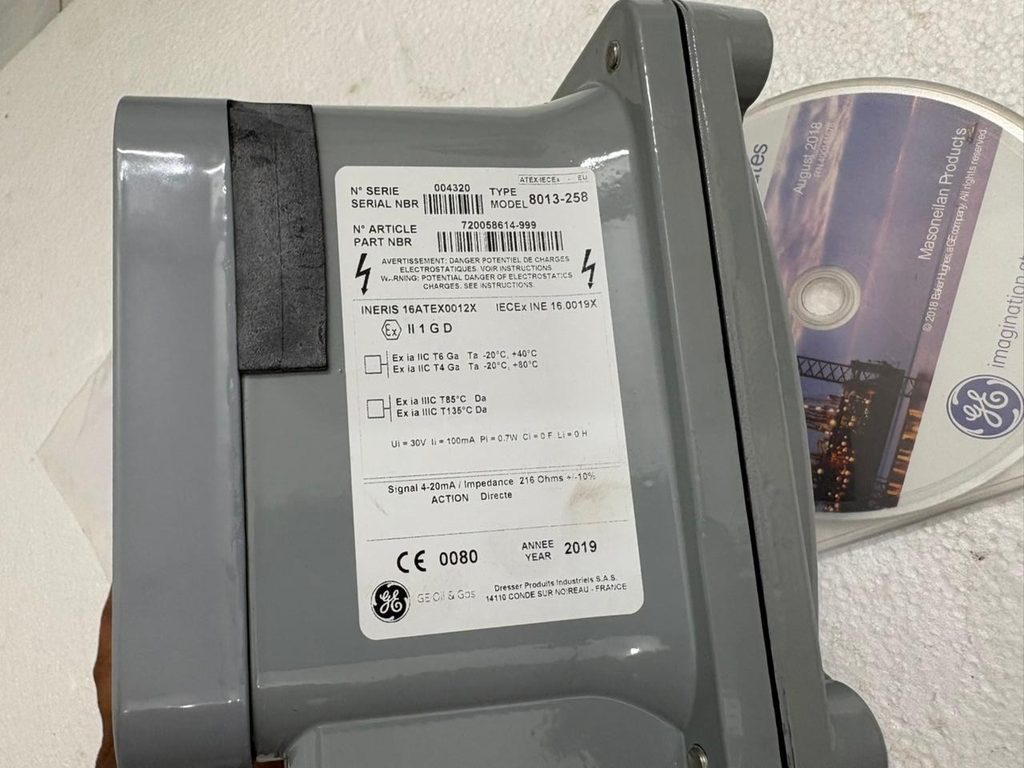

  • Manufacturing Identification: Part Number (PN): 720058614-999; Serial Number (SN): 004320; Production Date: 11/2019; CE Conformity: CE 0080
