DEIF RMV-112D 3-Phase Under & Over Protective Voltage Relay 700000936 200 Available

Product Description:

DEIF RMV-112D Protective Voltage Relay

Type: 3-Phase Under- and Over-Voltage Relay (Uni-line Series)

Series: RMV Series

Part Number/Item No.: RMV-112D/700000936 200

Country of Origin: Denmark (DEIF A/S)

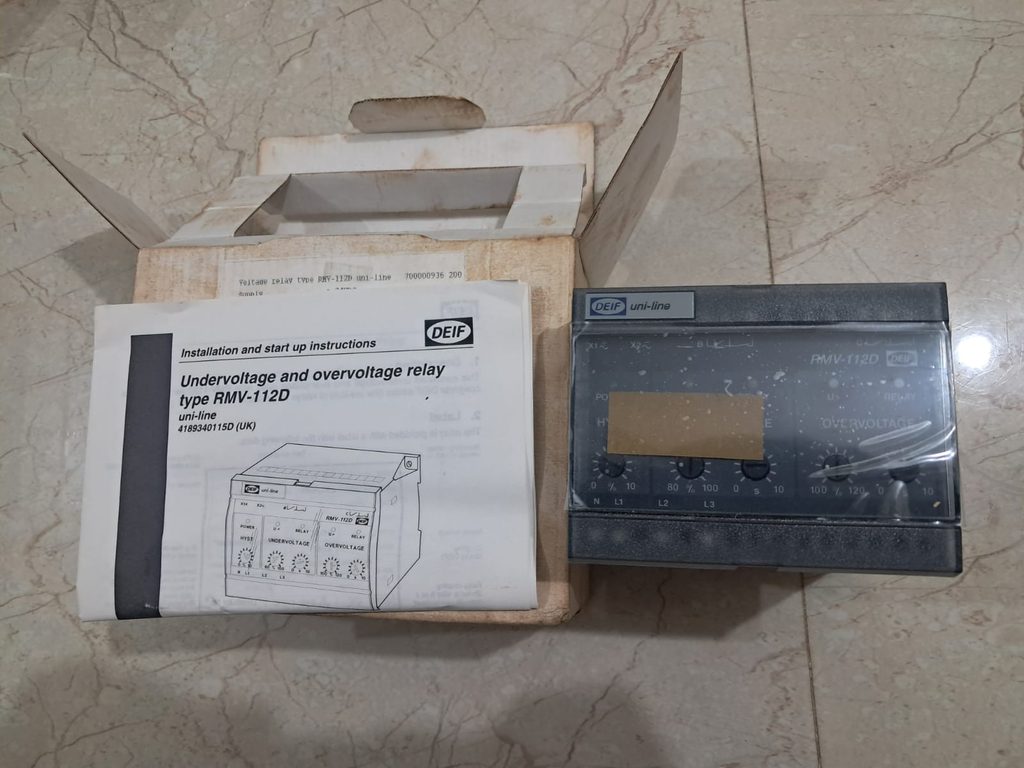

Condition: New/Original Box (Complete with official DEIF installation manual).

Fits For: Designed for generator, motor, and transformer protection against adverse system voltage conditions in marine and land-based power distribution systems. It is applied for 3-phase voltage monitoring, load shedding, warning, and tripping automation across generators and transformers.

Key Capabilities & Features:

• 3-Phase RMS Voltage Protection: Monitors 3-phase AC voltage continuously with built-in ANSI code 27 (Under-Voltage) and ANSI code 59 (Over-Voltage) protection.
• Adjustable Set Points & Delay: Features independent potentiometers on the front panel for setting U > (100-20%), U < (80-100%), time delay (0-10 s), and hysteresis (1-10%).
• Status LEDs & Latch Option: Equipped with front LEDs for Power, Fault condition (U > /U < warning), and active Relay trip status.
• Industrial Mounting: Supports standard 35 mm DIN rail or base surface mounting with terminal block connections.

Technical Specifications:

• Measuring Voltage (Un): 64/110 VAC
• Supply Voltage: 24 VDC
• Coupling Configuration: Delta
• Relay Outputs: 2 Output Relays (Relay B & Relay C: Normally De-energized)
• Contact Ratings: 250 VAC/24 VDC, 8 A (1 change-over switch per relay)
• Response Time & Accuracy: < 100 ms, temperature drift max 0.2% per 10°C
• Galvanic Isolation: 3250 V – 50 Hz – 1 min between inputs and outputs
• Operating Temperature: -25°C to 70°C
• Enclosure Rating: Case IP40, Terminals IP20

Please get back to us using our Whatsapp channel or contact us via Mail to get a Quotation.
